Product Features:

Non-contact Measurement

Pure Blue Light

High-Precision Calibration Standard

Accuracy: Customized
Specifications: Customized
Manufacturer: CoreBallTech

Application Areas:
This high-precision matte ball is designed for use in a wide range of industries, including automotive manufacturing, heavy machinery, aerospace, energy, precision manufacturing, 3C electronics, public safety, judicial systems, and cultural heritage preservation. It is part of a non-contact blue light laser measurement system that ensures accurate and reliable results.

Metrological Characteristics:

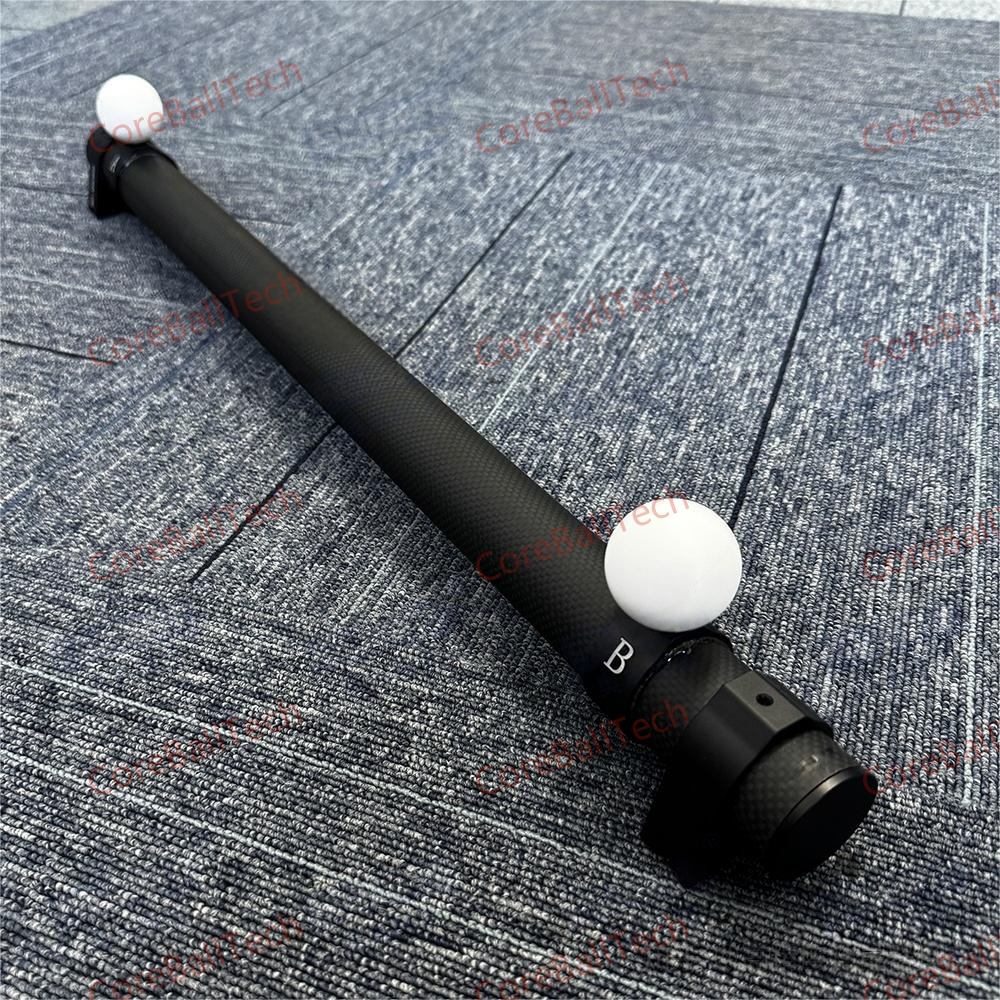

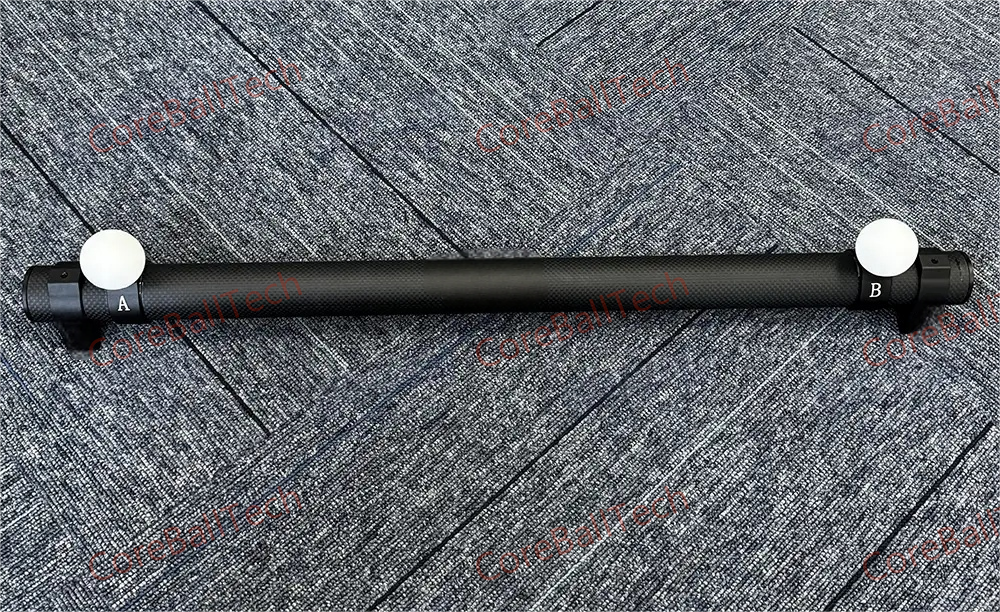

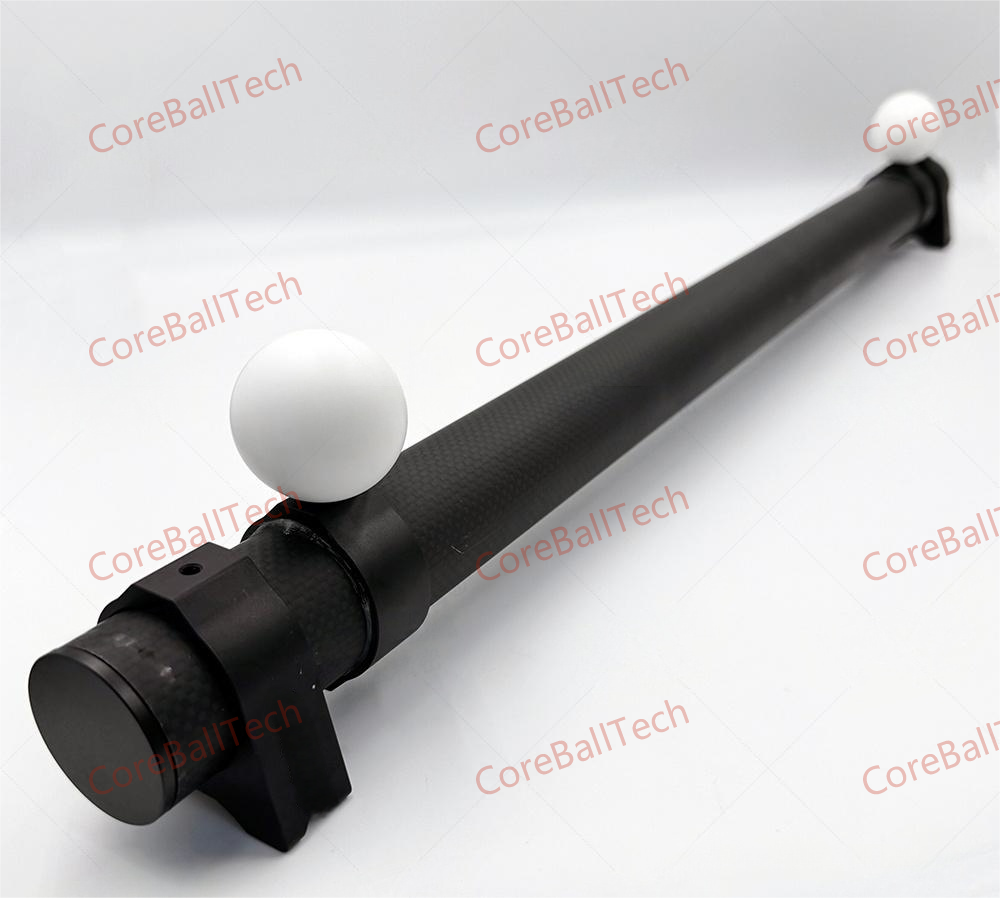

The ball spacing error is determined using the ball rod, which is made from steel, ceramics, or other suitable materials. The spherical ends of the rod feature diffuse reflective surfaces.

Calculation of Ball Spacing Error:
The ball spacing error is calculated by measuring the distance between the spherical ends of the rod, which serve as the reference points.

Measurement Accuracy Calculation:
The system calculates the measurement accuracy based on the response from the spherical ends, ensuring precise results.

Visual Calculation Speed:
The system performs real-time calculations, providing fast and accurate measurement data.

Recognition Repeatability:
High repeatability ensures that measurements are consistent across multiple tests.

Recognition Success Rate:
The success rate of recognition during measurement is optimized for high accuracy.

Guided Positioning Accuracy:
The system provides precise positioning guidance, essential for accurate measurements.

Optical System Applications:
The following optical measurement systems are integrated for non-contact calibration and precision measurements:

Industrial Handheld Laser Scanning System (Blue Light)

Industrial Optical Tracking Laser Scanning System (Intelligent Optical Tracking 3D Scanner)

Intelligent Reverse Positioning System (Intelligent Reverse Positioning Blue Laser 3D Scanner)

Intelligent Online Detection System (Mobile Automated Measurement Workstation)

Photogrammetry System (Wireless Photogrammetry System)

Intelligent 3D Sensor Visual Measurement System (Blue Laser High-Precision Line Laser Profile Meter)

These advanced systems are designed to deliver high-precision measurements across a variety of industries, ensuring non-contact, fast, and highly accurate results for ball spacing error calibration and other critical measurements.
